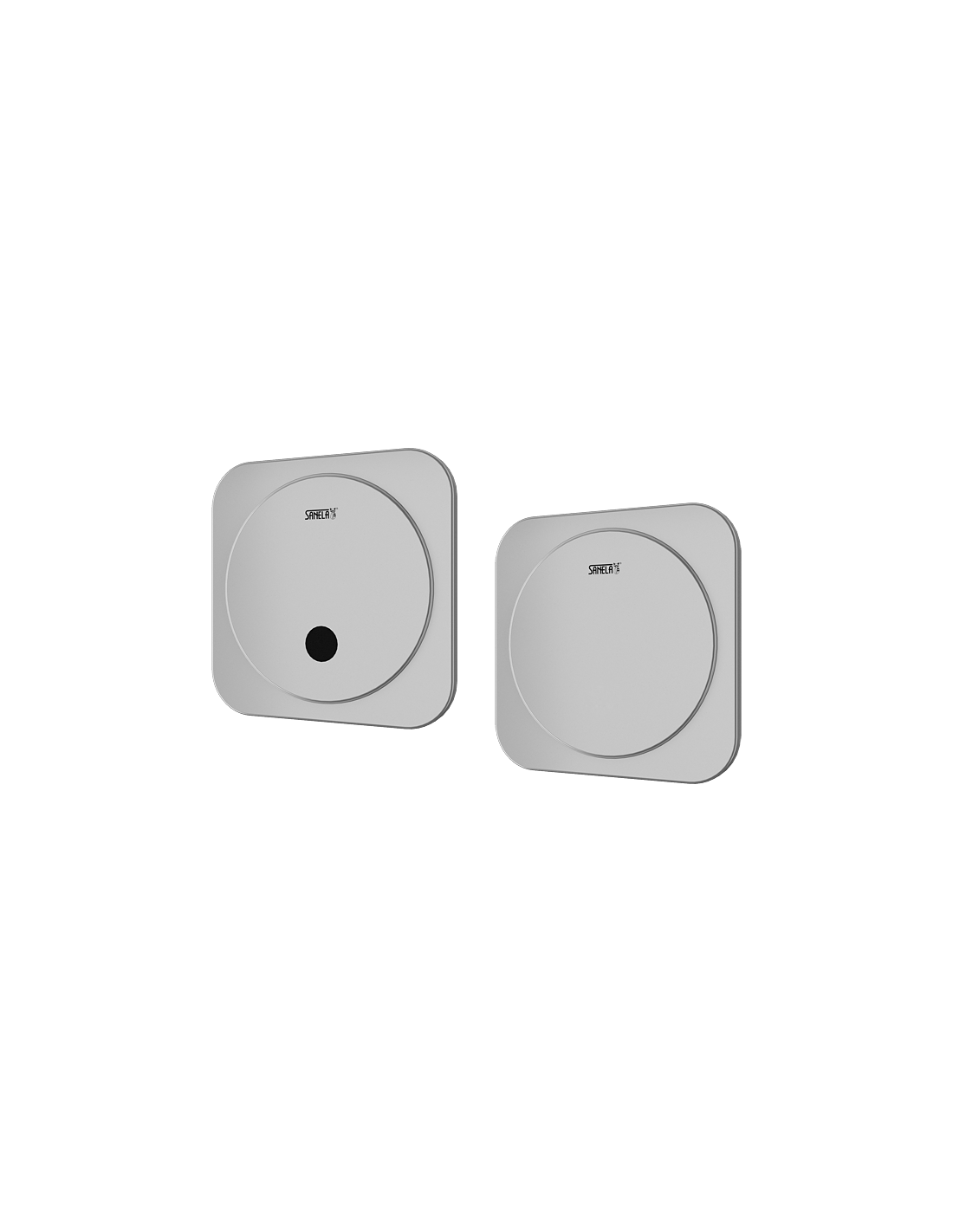

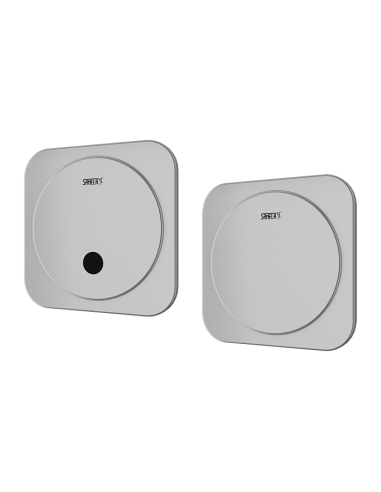

Infrasarkanā skalošanas iekārta pisuāru grupai, 24 V DC
Infrasarkanā skalošanas iekārta pisuāru grupai, 24 V DC

Infrasarkanā skalošanas iekārta pisuāru grupai, 24 V DC

42052
2-3 nädalat
535,45 €
Maksudega
Kuumakse al. 17.94€
Stainless steel cover dimension: 170 x 170 x 10 mm
Dimensions:
- plastic mounting box: 140 x 140 x 75 mm
- stainless steel mounting box: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Active range: 0,3 - 3 m
Recommended flow pressure: 0,15 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16), male thread G 1“
Water outlet: male thread G 1“


  • system flushes a group of urinals at one time
  • system reacts to the users attendance in front of urinals in the axis of sensor (approx. 200 mm from the front edge of urinal), minimum stay time in active range is 7,5 s
  • maximum active range from sensor to the reflexive foil is 3 m (extended activity range to order)
  • system flushes all urinals at one time after leaving of all users from active range of sensor
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
Pielietojums
Avalikud ruumid
Valsts
Čehija
Garantija
2 aastat
Kontrole
infrasarkanais
Barošanas avots
24V DC
Skalošanas iekārta
bez pisuāra
42052

SANELA

Traditsiooniline Tšehhi tootja

Oleme enam kui 20 aastat tootnud sanitaarseadmete elektroonikat, et muuta Teie elu lihtsamaks ja jätta Teile vaid väikesed toredad mured. Avastage ja nautige koos meiega maailma, mis on täis elektroonikat.
