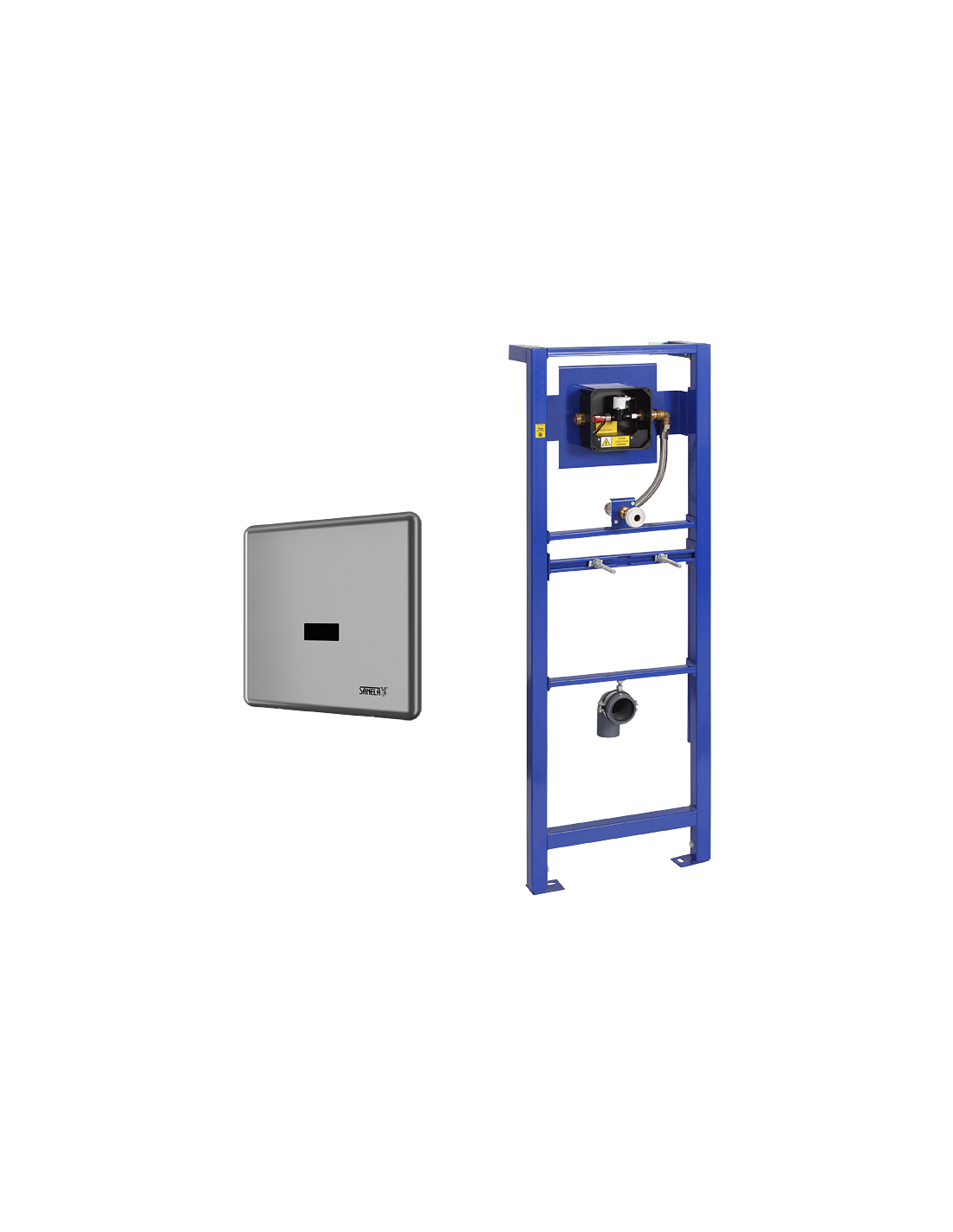

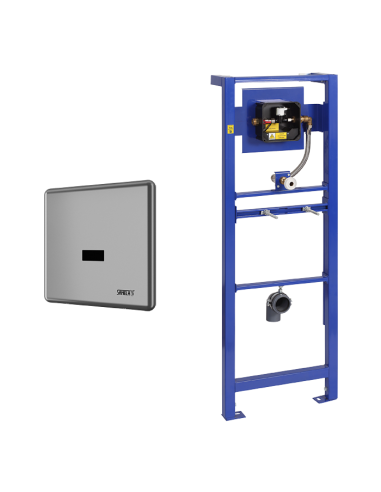

SLP 02KZ un SLR 22 komplekts, pieslēgums iekļauts, 230 V AC
SLP 02KZ un SLR 22 komplekts, pieslēgums iekļauts, 230 V AC

SLP 02KZ un SLR 22 komplekts, pieslēgums iekļauts, 230 V AC

1033
2-3 nädalat
473,58 €
Maksudega
Kuumakse al. 15.92€
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Mounting frame dimensions: 1180 - 1350 x 410 x 155 - 235 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing


  • including pre-installed mounting frame SLR 22
  • is destined for plasterboard constructions or for mounting to the floor and to the back wall
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10 and М8, waste pipe holder with the elbow pipe Ø 50 mm and watter inlet G 1/2“
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time from 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Pielietojums
Avalikud ruumid
Valsts
Čehija
Garantija
2 aastat
Kontrole
infrasarkanais
Barošanas avots
230V AC
Skalošanas iekārta
bez pisuāra
Atrašanās vieta
virs pisuāra
1033

SANELA

Traditsiooniline Tšehhi tootja

Oleme enam kui 20 aastat tootnud sanitaarseadmete elektroonikat, et muuta Teie elu lihtsamaks ja jätta Teile vaid väikesed toredad mured. Avastage ja nautige koos meiega maailma, mis on täis elektroonikat.
