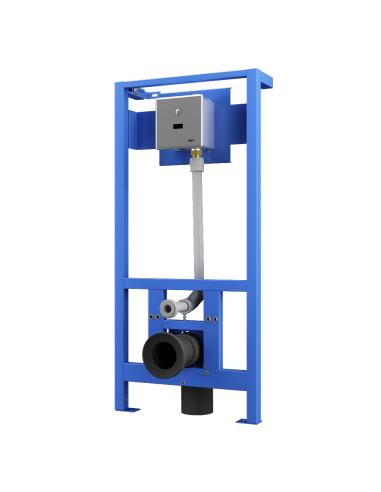

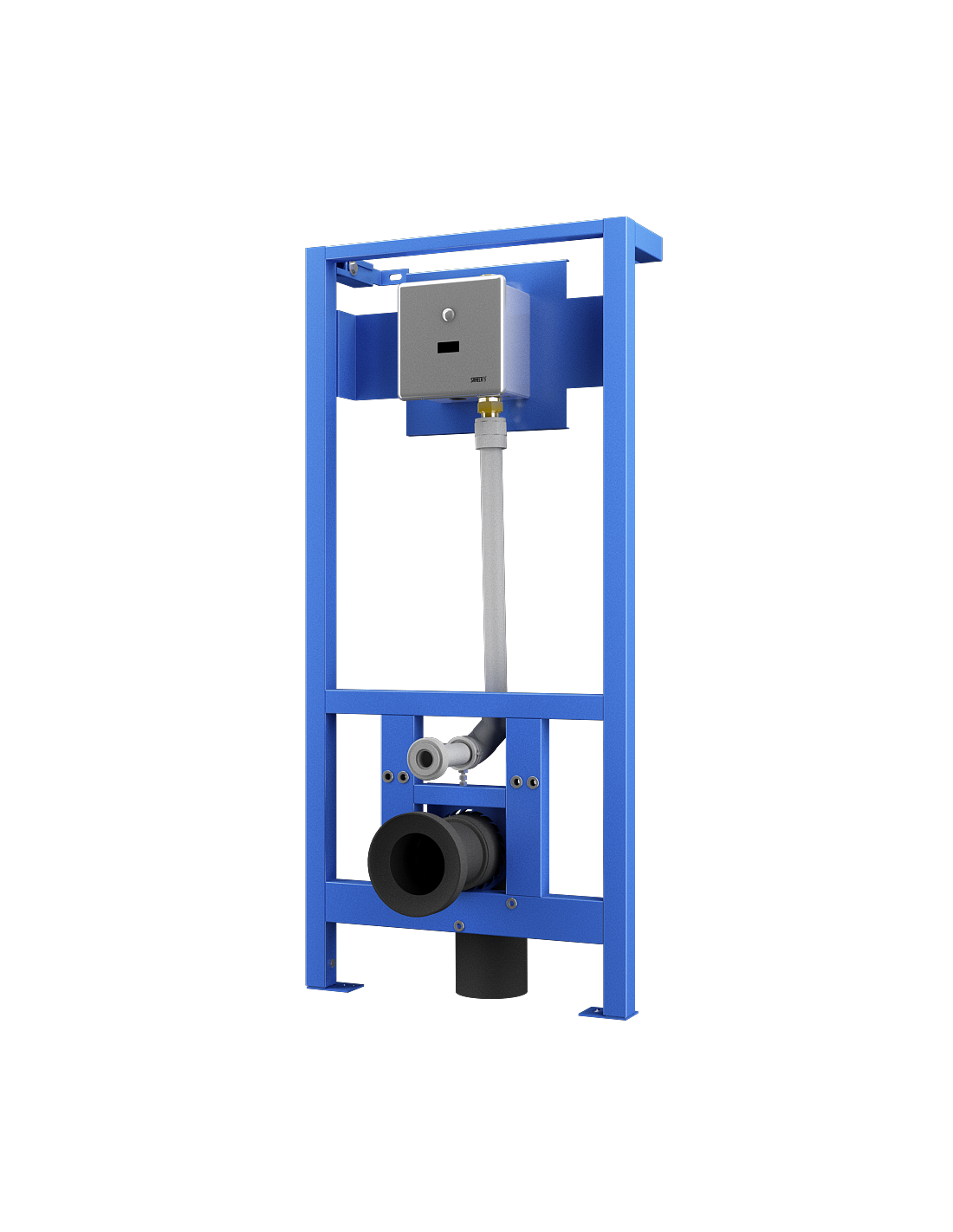

SLW 01NKB un SLR 03, 6 V komplekts
SLW 01NKB un SLR 03, 6 V komplekts

SLW 01NKB un SLR 03, 6 V komplekts

4102
2-3 nädalat
623,76 €
Maksudega
Kuumakse al. 19.07€
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 150 x 150 x 100 mm
Mounting frame dimensions: 1120 - 1290 x 510 x 155 - 235 mm
Operating voltage: 6 V
Power input: 3 W
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,8 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1′′
Water outlet: male thread G 1“


  • including pre-installed mounting frame SLR 03
  • is destined for the brick wall
  • five-point system for fixing of stainless steel toilets
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time from 0,5 to 15,5 s
  • possibility of additional manual flush by push-button (f.e. during the cleaning)
  • automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
  • monitoring of battery capacity (for models with index B)
  • parameters adjustment by remote control SLD 03
Pielietojums
Avalikud ruumid
Valsts
Čehija
Garantija
2 aastat
Materiāls
nerūsējošs tērauds
Kontrole
infrasarkanais
Barošanas avots
darbojas ar akumulatoru
Skalošanas veids
ūdenim zem spiediena
