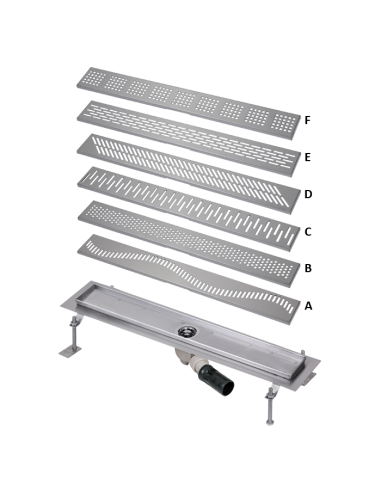

Vannas istabas grīdas noteka samontēta atklātā telpā, 850 mm
Vannas istabas grīdas noteka samontēta atklātā telpā, 850 mm

Vannas istabas grīdas noteka samontēta atklātā telpā, 850 mm

69171
2-3 nädalat
428,86 €
Maksudega
Kuumakse al. 14.36€



BATHROOM DRAIN

  • length L = 850 mm
  • collar serves for a tight and reliable connection to hydro-isolation
  • collar with the frame sealed up against the moisture
  • mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
  • 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
  • side bends for better stability
  • bond screw for connection with bonding conductor
  • different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
  • load class K3 (till 300 kg)
  • material AISI-304

WASTE OUTLET

  • plastic siphon DN 50 mm
  • according to the norm DIN EN 274; rate of flow 42 l/min
  • possibility od adjustment of the direction and the slope of the drain to 20°
  • different siphon positions could be made to order

GRID

  • design of grids A - F
  • index X - brushed finish
  • material stainless steel AISI - 304
  • other designs could be made to order
Pielietojums
Avalikud ruumid
Valsts
Čehija
Tips
vannas istaba
Garantija
2 aastat
Montāža
āra
Garums,mm
850 mm
69171

SANELA

Traditsiooniline Tšehhi tootja

Oleme enam kui 20 aastat tootnud sanitaarseadmete elektroonikat, et muuta Teie elu lihtsamaks ja jätta Teile vaid väikesed toredad mured. Avastage ja nautige koos meiega maailma, mis on täis elektroonikat.
