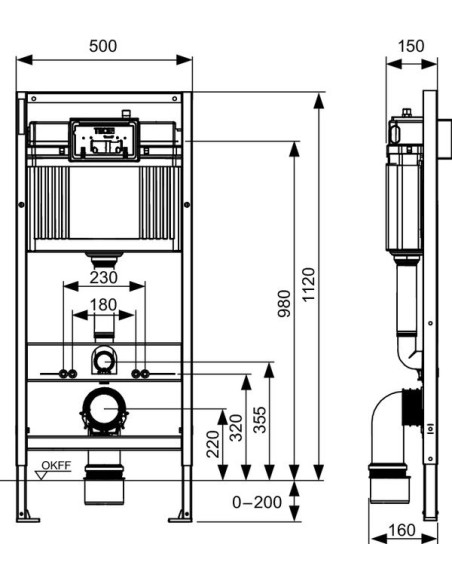

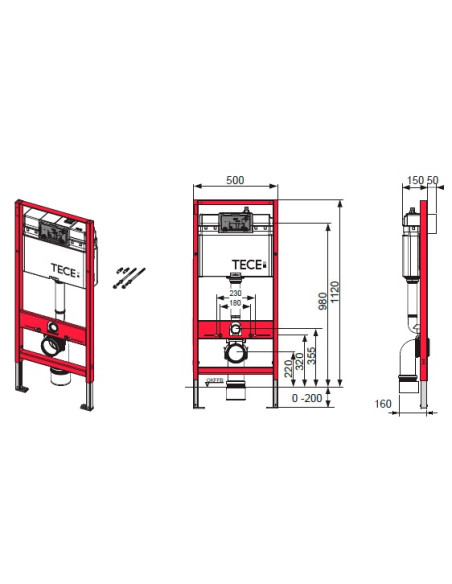

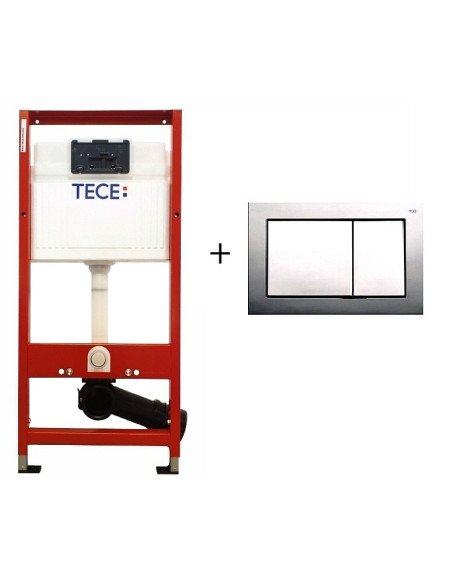

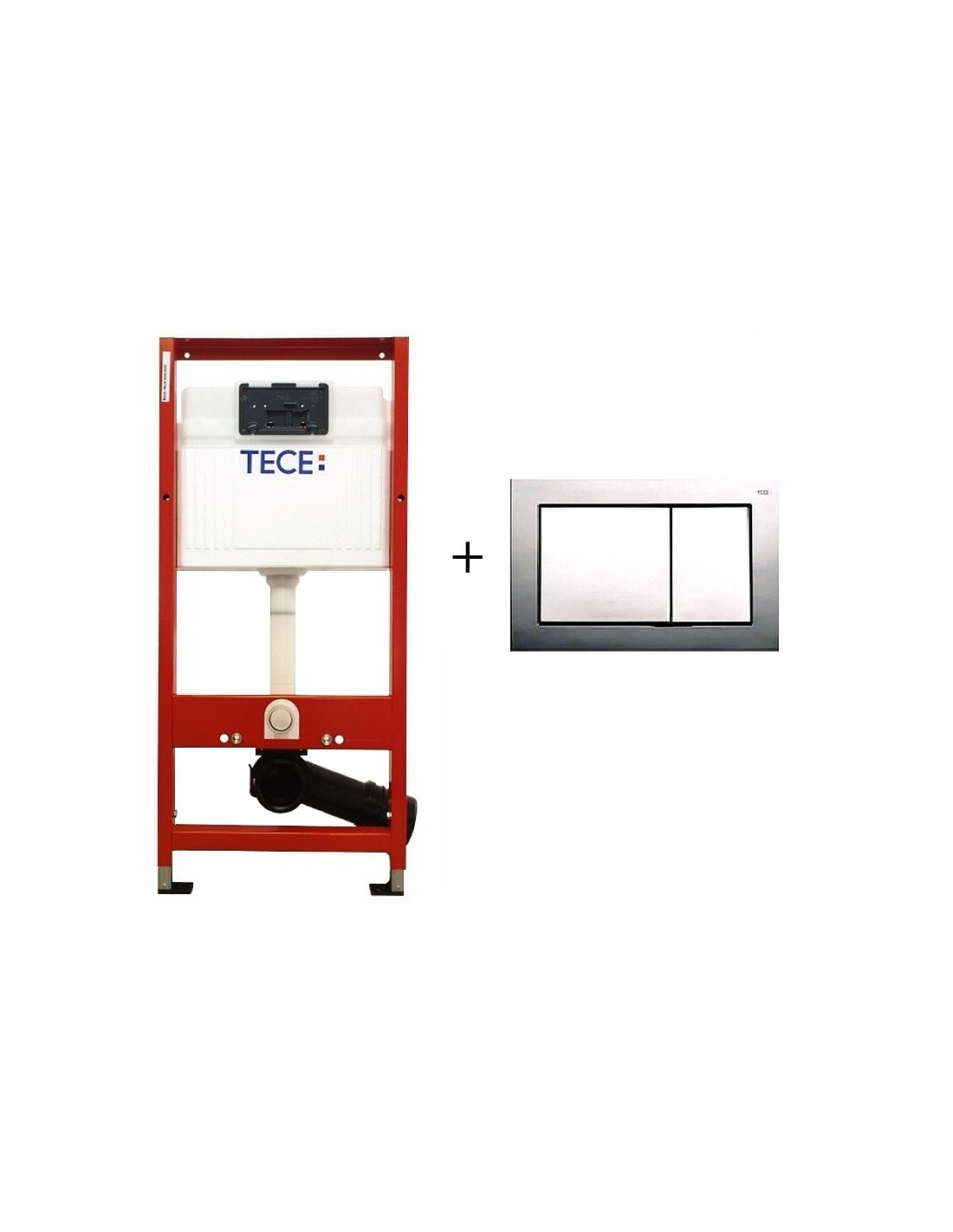

TECEbase toilet module with Base cistern, including bright chrome toilet flush plate, installation height 1120 mm

9400406
In stock!
€199.00
VAT included
Monthly payment from 9.83€
1-3 working days


Name:

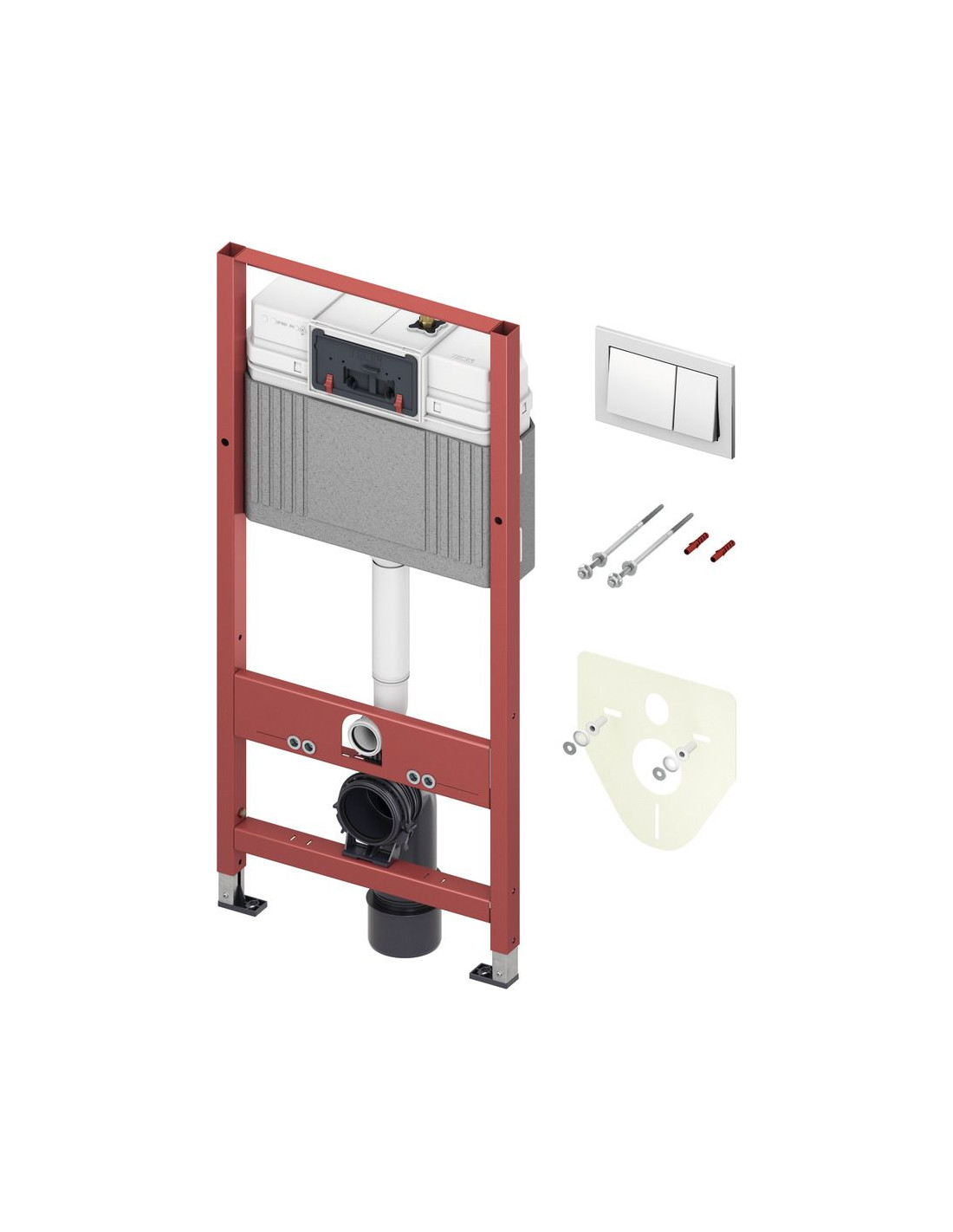

TECEbase toilet module with Base cistern, including TECEbase bright chrome toilet flush plate, installation height 1120 mm
Description:
Toilet module for single block mounting, as a pre-wall module in front of solid walls, and for incorporation into metal or wooden stud walls.

Base cistern for front actuation:
  • Safety tank made of impact-resistant plastic, tested to EN 14055
  • Cistern fully pre-assembled
  • Cistern connection with outer thread R 1/2" at the top, compatible with quick adapters
  • 3-way stop valve; shut-off valve with flush function with installed filling valve
  • 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush.
  • Insulated against condensation water
  • Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109

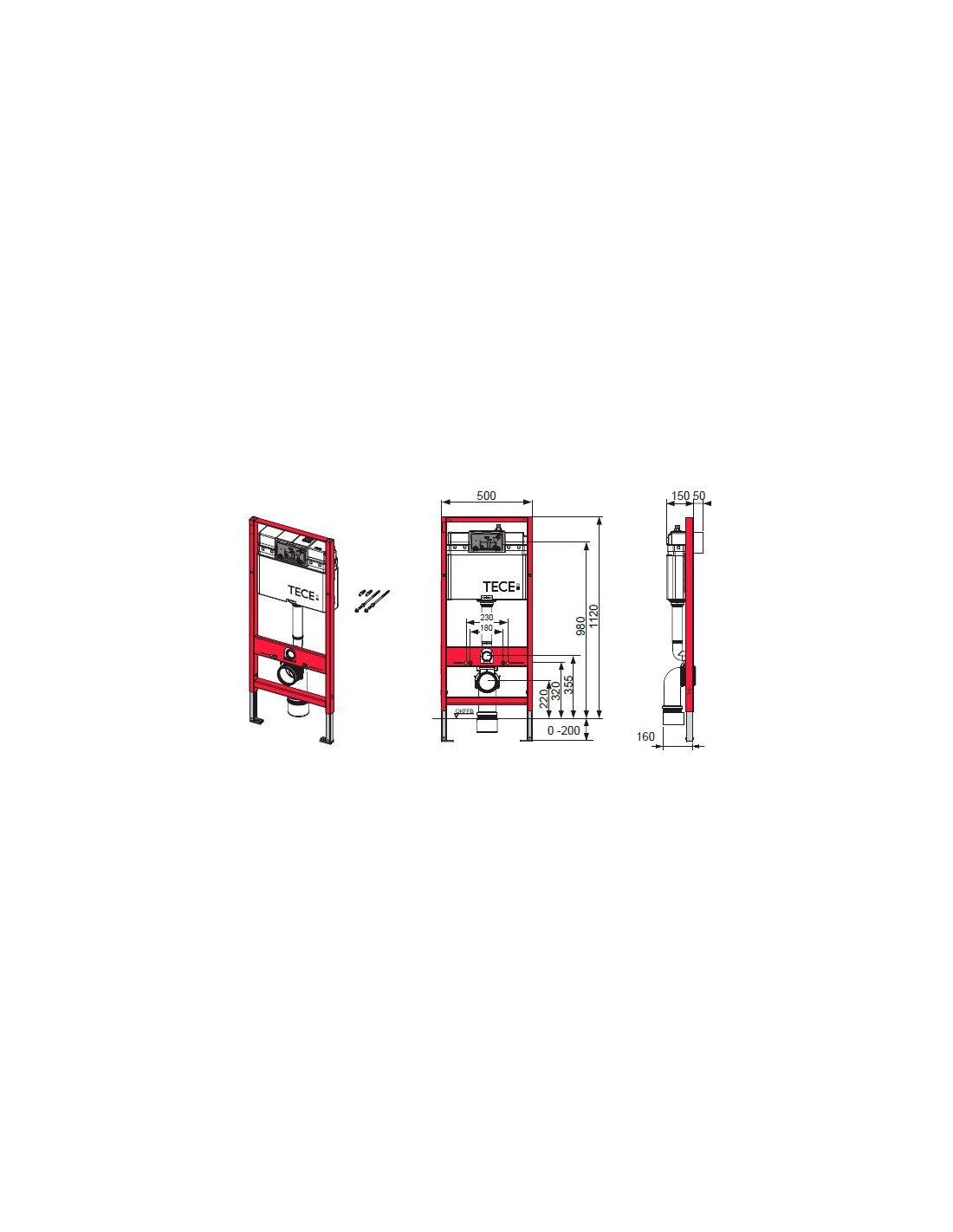

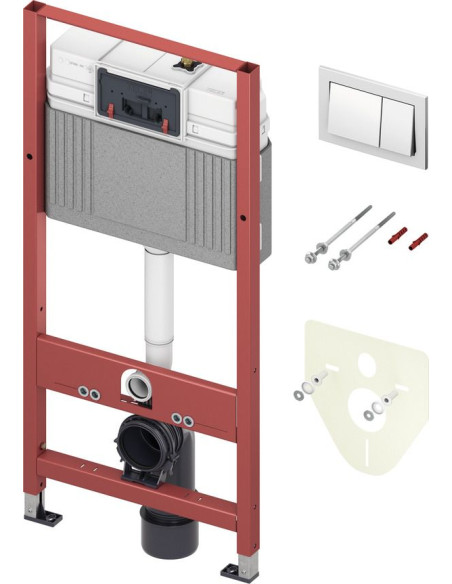

Module frame:

  • Self-supporting, powder-coated
  • Two M 12 retaining bolts and nuts
  • Four rivet nuts for installation spacing 180 mm or 230 mm
  • Mounting set for solid walls
  • Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
  • Joint adapter also suitable for horizontal installation
  • DN 90 toilet connection set including protective plug

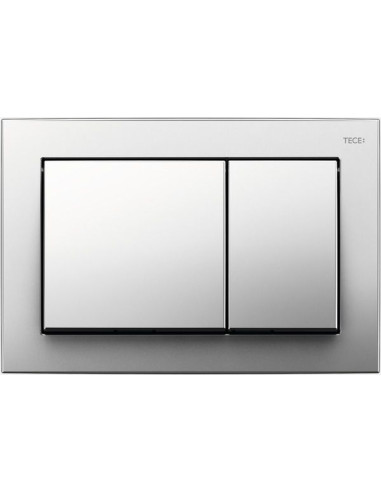

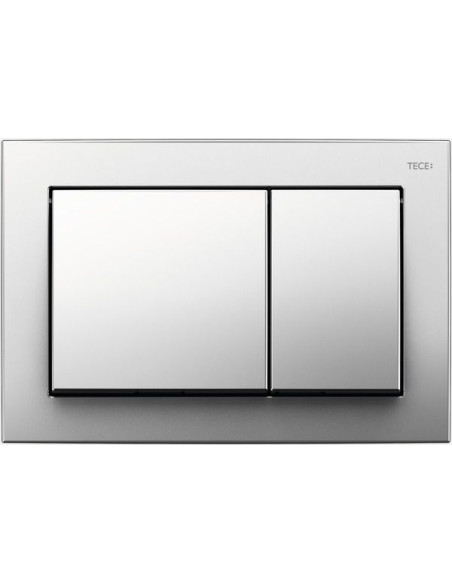

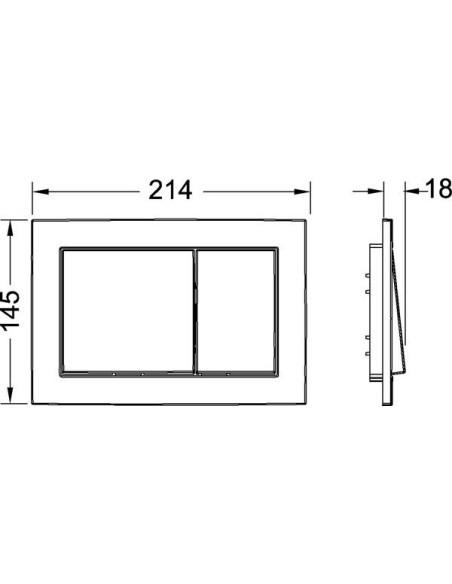

  • TECEbase dual-flush plate in bright chrome
  • Toilet sound insulation set


Please order separately:
  • TECE upgrade set dry-wall for TECE shower toilets (optional)
  • Shell structure/fine installation set to connect an electronic shower toilet


Note:

If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is not larger than 18 cm) - e.g. V & B Memento, Sentique, Subway 2.0 - it is necessary to install the steel brace set 9041029 in the lower build space.
