SLP 02KVZ un SLR 22 komplekts, pieslēgums iekļauts, 230 V AC
SLP 02KVZ un SLR 22 komplekts, pieslēgums iekļauts, 230 V AC

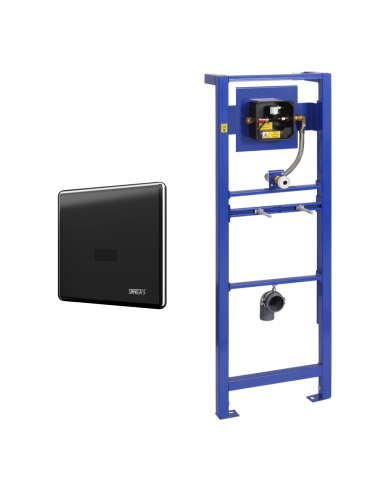

Set of SLP 02KVZ and SLR 22, connection included, 230 V AC

1115
2-3 weeks
€513.85
VAT included
Monthly payment from 17.31€
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Mounting frame dimensions: 1180 - 1350 x 410 x 155 - 235 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing


  • including pre-installed mounting frame SLR 22
  • is destined for plasterboard constructions, for mounting to the floor and to the back wall
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10 and М8, waste pipe holder with the elbow pipe Ø 50 mm and watter inlet G 1/2“
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time from 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Pielietojums
Public spaces
Valsts
Čehija
Garantija
2 years
1115

SANELA

Traditional czech producer

For more than 20 years we have been producing the electronics for sanitary equipment to make Your life easier and to leave just the little, nice worries for You. Explore and enjoy with us the world full of the electronics.
