Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 150 x 150 x 100 mm |
Mounting frame dimensions: | 1120 - 1290 x 510 x 155 - 235 mm |
Operating voltage: | 6 V |
Power input: | 3 W |
Active range: | 0,6 - 0,75 m |
Recommended flow pressure: | 0,1 - 0,8 MPa |
Rate of flow: | 70 l/min. by the pressure 0,15 MPa (inf. data) |
Water inlet: | Ø min. 32 mm (PN 16) male thread G 1′′ |
Water outlet: | male thread G 1“ |

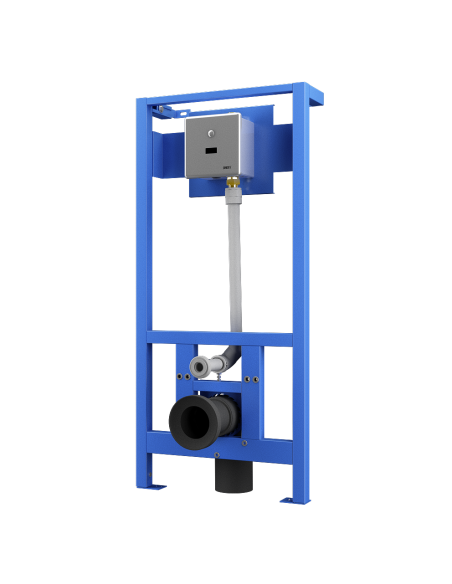

- including pre-installed mounting frame SLR 03
- is destined for the brick wall
- five-point system for fixing of stainless steel toilets
- metal frame construction with surface finishing - blue powder coated
- mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
- toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
- system reacts to the user attendance in active range of the sensor at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time from 0,5 to 15,5 s
- possibility of additional manual flush by push-button (f.e. during the cleaning)
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- monitoring of battery capacity (for models with index B)
- parameters adjustment by remote control SLD 03
- Pielietojums
- Public spaces
- Valsts
- Čehija
- Garantija
- 2 years
- Materiāls
- nerūsējošs tērauds
- Kontrole
- infrasarkanais
- Barošanas avots
- darbojas ar akumulatoru
- Skalošanas veids
- ūdenim zem spiediena
