Floor drain (stainless steel) 655MM, SZA565

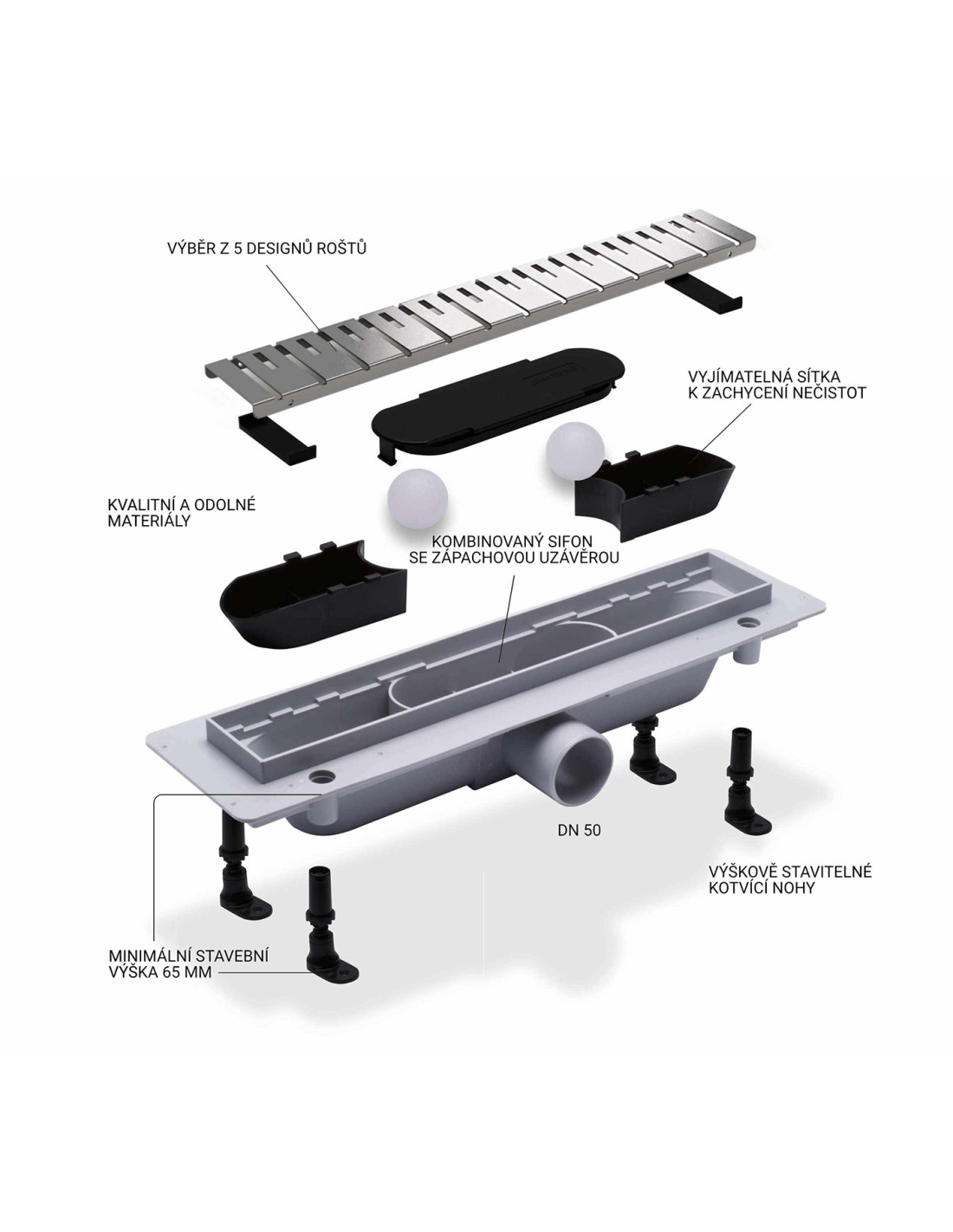

The drain channel includes a siphon with a combined odour trap with a high flow rate, which is easily removable, disassembled and allows for mechanical cleaning of the waste system.

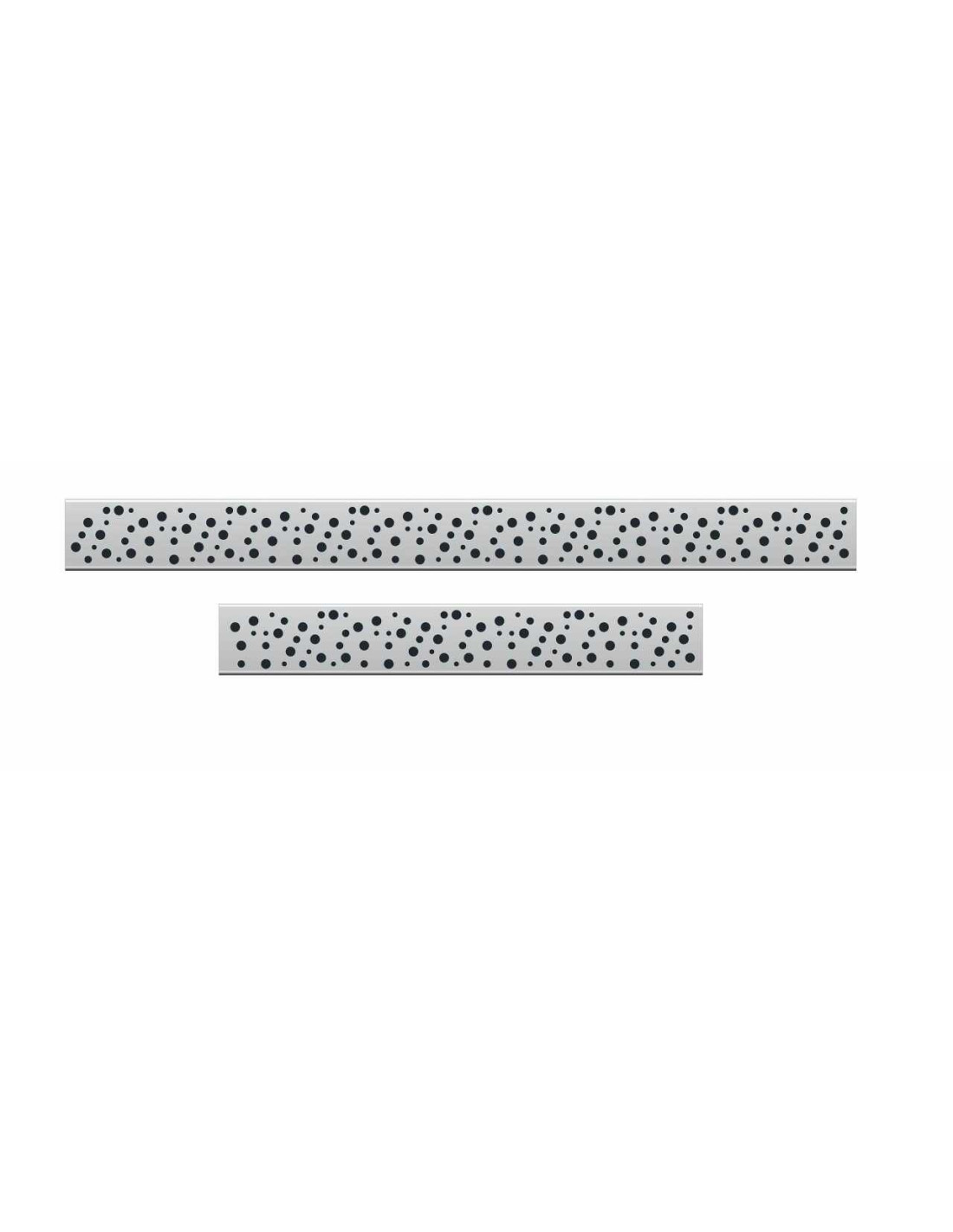

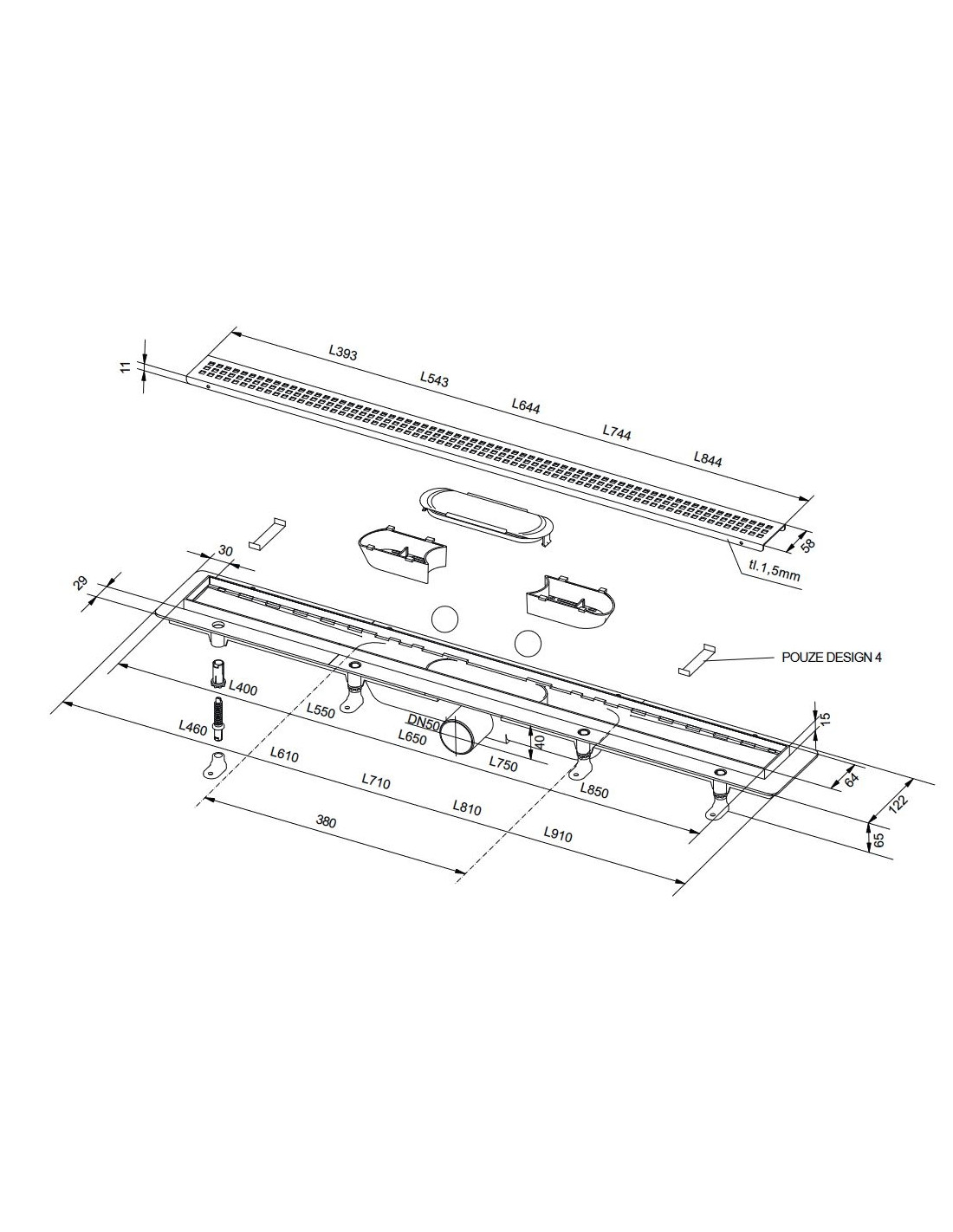

The plastic inclined drain body is made of a particularly durable material with a DN 50 drain. The design grates are made in 5 variants of high-quality stainless steel in a brushed finish and in five lengths from 393 to 844 mm. The drain includes a siphon with a combined odour trap with a high flow rate, which is easily removable, disassembled and allows for mechanical cleaning of the waste system. Removable and cleanable filters are used to capture hair and other debris. Thanks to the adjustable feet, the installation of the drain is very easy. The drain is connected to the surrounding lower concrete using the butyl strip included in the package.

drain length: 710 mm

drain material: plastic

grate material: stainless steel

installation: indoor

maximum flow rate: 60 l/min

standard: EN 1253

Czech product: designed and manufactured in Brno
