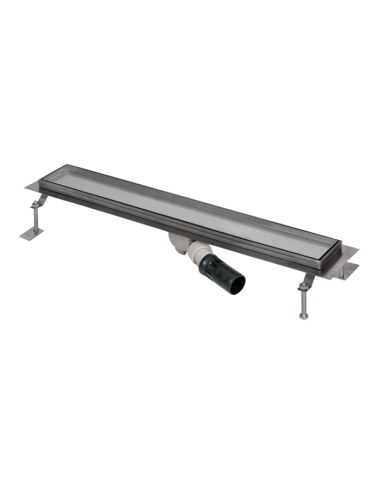

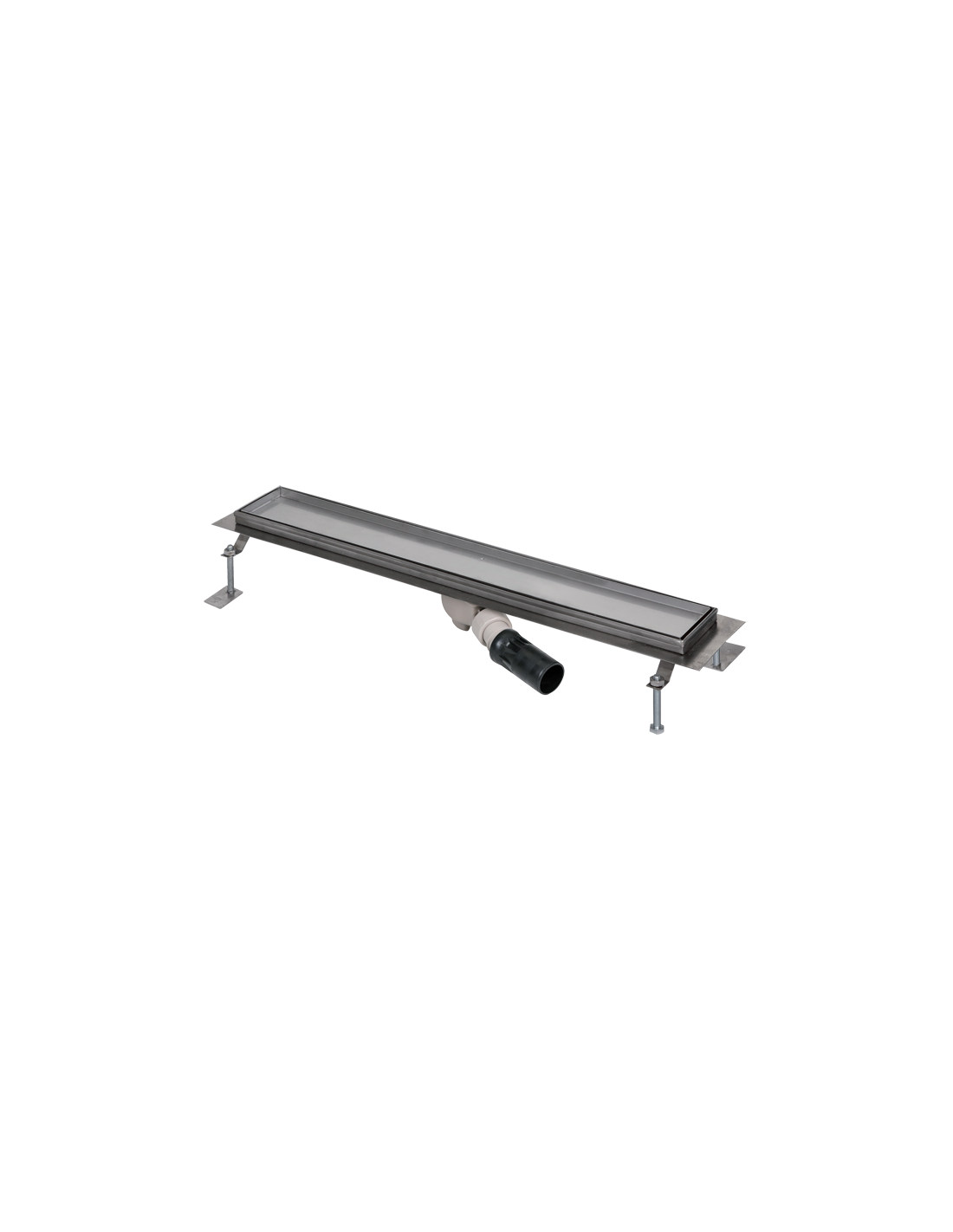

BATHROOM DRAIN
- length L = 1150 mm
- collar serves for a tight and reliable connection to hydro-isolation
- collar with the frame sealed up against the moisture
- mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
- 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
- side bends for better stability
- bond screw for connection with bonding conductor
- different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
- load class K3 (till 300 kg)
- material AISI-304
WASTE OUTLET
- plastic siphon DN 50 mm
- according to the norm DIN EN 274; rate of flow 42 l/min
- possibility od adjustment of the direction and the slope of the drain to 20°
- different siphon positions could be made to order
- Pielietojums
- Public spaces
- Valsts
- Čehija
- Tips
- vannas istaba
- Garantija
- 2 years
- Montāža
- flīžu ievietošanai ārā
- Garums,mm
- 1150 mm
