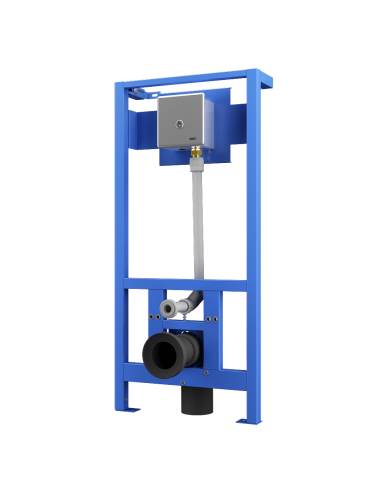

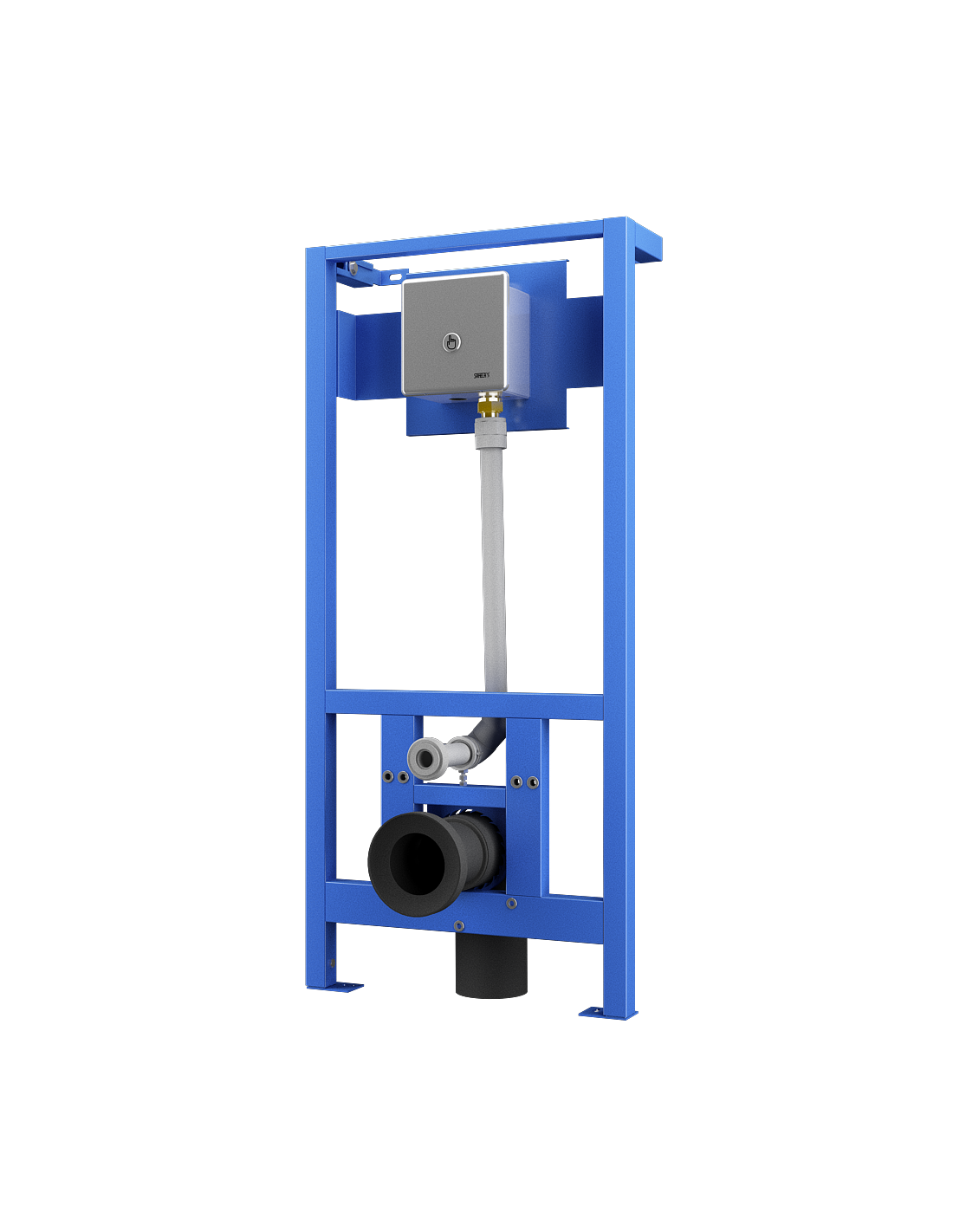

SLW 01P un SLR 03 komplekts, 24 V DC
SLW 01P un SLR 03 komplekts, 24 V DC

SLW 01P un SLR 03 komplekts, 24 V DC

4103
Parasti 2-3 nedēļas
635,56 €
Stainless steel cover dimension: 170 x 160 x 10 mm
Mounting box dimension: 150 x 150 x 100 mm
Mounting frame dimensions: 1120 - 1290 x 510 x 155 - 235 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,15 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1′′
Water outlet: male thread G 1“


  • vandal-proof
  • including pre-installed mounting frame SLR 03
  • is destined for the brick wall
  • five-point system for fixing of stainless steel toilets
  • metal frame construction with surface finishing - blue powder coated
  • mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • water flows after soft push of the piezo button
  • adjustable flushing time 0,5 - 15,5 s, standard 8 s
  • automatic hygiene flush after each eighth flush or 24 hours non using of toilet
  • parameters adjustment by remote control SLD 04
Pielietojums
Publiskās telpas
Valsts
Čehija
Garantija
2 gadi
Materiāls
nerūsējošs tērauds
Kontrole
piezo poga
Barošanas avots
24V DC
Skalošanas veids
ūdenim zem spiediena
