Vannas istabas grīdas noteka flīžu ieliktņiem, pie sienas, garums 750 mm
Vannas istabas grīdas noteka flīžu ieliktņiem, pie sienas, garums 750 mm

Vannas istabas grīdas noteka flīžu ieliktņiem, pie sienas, garums 750 mm

69130
Parasti 2-3 nedēļas
445,12 €

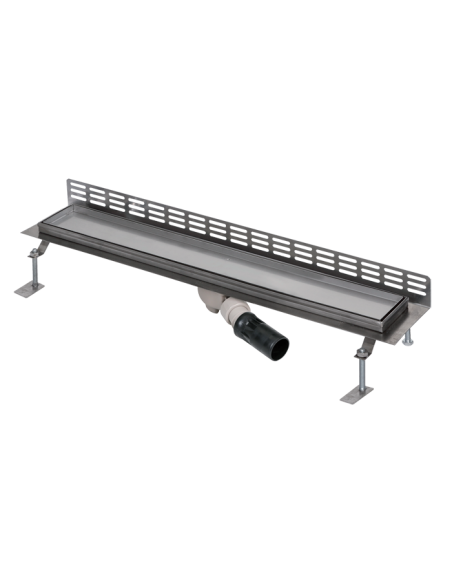

BATHROOM DRAIN

  • length L = 750 mm
  • collar serves for a tight and reliable connection to hydro-isolation
  • collar with the frame sealed up against the moisture
  • mounting legs with M10 screws for better seating of the drain to the floor (horizontal position)
  • 2 pcs. of waterproofing tapes for fixation to base, including screws and wall plugs
  • side bends for better stability  bond screw for connection with bonding conductor
  • different lenghts could be made to order (till 1200 mm - depression to the waste, over 1200 mm - decline to the waste)
  • load class K3 (till 300 kg)
  • material AISI-304

WASTE OUTLET

  • plastic siphon DN 50 mm
  • according to the norm DIN EN 274; rate of flow 42 l/min
  • possibility od adjustment of the direction and the slope of the drain to 20°
  • different siphon positions could be made to order
Pielietojums
Publiskās telpas
Valsts
Čehija
Tips
vannas istaba
Garantija
2 gadi
Montāža
flīžu ievietošanai blakus sienai
Garums,mm
750 mm
69130

SANELA

Tradicionālais čehu ražotājs

Jau vairāk kā 20 gadus ražojam sanitārtehnikas elektroniku, lai atvieglotu Jūsu dzīvi un atstātu Jums tikai mazās, jaukās rūpes. Izpētiet un izbaudiet kopā ar mums pasauli, kas ir pilna ar elektroniku.
